Hand Rollers

SKU:
HR
Hand Rollers

Product Overview

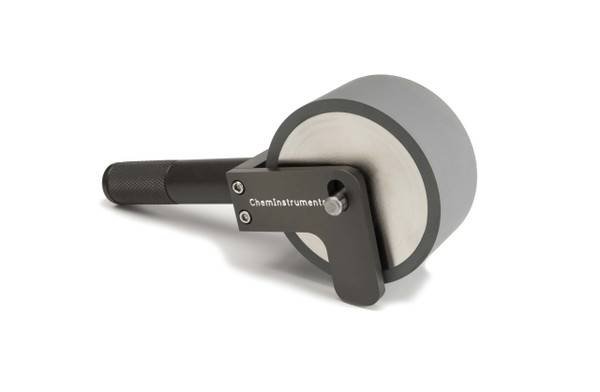

4.5 lb Hand Roller (pictured)

  • 4.5 lb (2045g) roller features a steel core with a Shore scale A 80 durometer silicone rubber cover
  • Diameter of 3.75" (95 mm) and a width of 1.75" (45 mm)
  • Legs on handle extend beyond the circumference of the roller to protect roller surface
  • Slots on handle allow roller axles to "float" only the weight of the roller during operation
  • Meets the requirements of PSTC Appendage B, 2.8 and other industry standards

10 lb. Hand Roller

  • 10 lb (4540 g) roller features a solid steel core with an 8 RMS polished surface
  • Diameter of 5.00" (127 mm) and a width of 1.75" (45 mm)
  • Legs on handle extend beyond the circumference of the roller to protect roller surface
  • Slots on handle allow roller axles to "float" only the weight of the roller during operation
  • Meets the requirements of PSTC Appendage B, 2.8 and other industry standards

Custom Design Hand Roller

  • Custom design rollers made to nearly any customer specification
  • Legs on handle extend beyond the circumference of the roller to protect roller surface
  • Slots on handle allow roller axles to "float" only the weight of the roller during operation
  • Meets the requirements of PSTC Appendage B, 2.8 or any other method required
  • Contact ChemInstruments for more information about custom design hand rollers



FINAT Hand Roller

  • 2 Kg (4.4 lb) roller features a steel core with a shore scale A 80 durometer silicone rubber cover
  • Diameter of 85 mm (3.34") and a width of 50 mm (1.97")
  • Legs on handle extend beyond the circumference of the roller to protect roller surface
  • Slots on handle allow roller axles to "float" only the weight of the roller during operation
  • Meets the requirements of FINAT standard 2.1

Hand Rollers Tip Sheet

ChemInstruments offers a range of standard hand rollers to complement your ASTM, PSTC, AFERA, FED and FINAT adhesive preparation. The Hand Rollers are manufactured to allow the easy removal of the roll for calibration and replacement purposes. Certificates are issued upon request for any of the hand rollers. We also offer a custom hand roller design service for more unique applications. The hand roller frame is made of aluminum and is Teflon coated for ease of cleaning and maintenance.
