Product Overview
- Rugged construction, capable of withstanding the abuse of the production environment
- Compact and easy to use
- Easy-to-read, 0.5" (1 cm) LCD timer display is set to time in increments of 1/10 of a minute
- Designed to use standard, 2" x 3" (50mm x 75mm) format, test panels
- Capable of holding panels of various thicknesses, up to 1/4" (6mm)
- Mechanical switches can be calibrated to trip when using weights from 100 to 1,000 grams
- Adjustable feet allow the user to level the testing plane
- Panel rack is marked for the standard 178° back tilt, as specified by most shear test methods
- Adjustable angle panel rack allows the user to easily change the test angle from 178° to 90°
- Foam covered weight landing platforms absorb the impact of falling test weights
- Universal input voltage from 85-265 VAC (50/60 Hz)
- Operating temperature range 32° - 150° F (0° - 70° C)
- Shears are designed to be used with weights from 100gr to 1000gr
- Any weight which is larger than the 1000gr requires the S-EXT(Shear Extension) accessory
- The largest weight that can be safely used with the shear stand is 3000gr
EZ Shear
- EZ Shear software is a very simple and intuitive way to get more out of your testing equipment. It provides test data results in report-ready format. This application requires an external PC. (See more information about the EZ-Shear product)
Calibration Service
- Calibration Service is available for this equipment. Contact us for more information.
Accessories
Essential
- Test panel - 2" x 3" (50mm x 75mm)
- Steel test weight with hook - 500 or 1000 gram capacity
- Shear test clip
(above items are all included in our accessory package - STA-500 or STA-1000)
Non-Essential
- EZ-Shear
- Shear extension plate
- Thick panel clamp
- Custom sized shear test clips
- Various test weights
- Various test panel sizes and materials
- Custom sized hand rollers
- Various sized specimen tape cutters
- Test panel holder
Options
- PSTC and TLMI testing manuals and videos
Specifications
- Height: 18" (46 cm)
- Width: 39" (99 cm)
- Depth: 7" (18 cm)
- Weight: 43 lbs (19 Kg)
Methods
Some of the more popular test methods that this device is capable of performing:
- PSTC: 107A, B, C, D, E, F, 14
- ASTM: D 3654A, D 6463B
- TLMI: 7
- AFERA: 4012
- FINAT: FTM-8

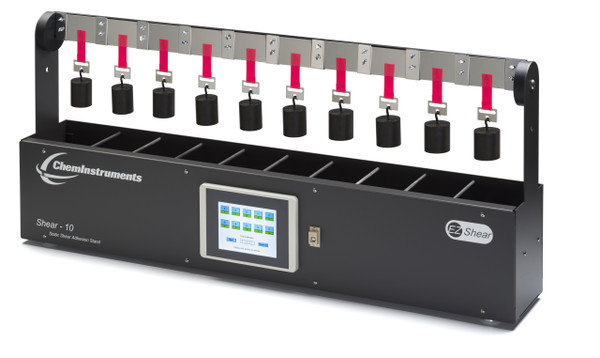

Precise room temperature shear tests are made easier with the ChemInstruments SS-RT-10 Room Temperature 10 Bank Shear Tester. It performs shear tests according to PSTC-7 Procedure A, TLMI Test No. 7 and ASTM D 3654 Procedure A for holding power of pressure sensitive tapes. It can also be used for PSTC-14, adhesion of pressure sensitive tape to fiberboard at 90° angle and constant stress and PSTC-7 Procedure B.
